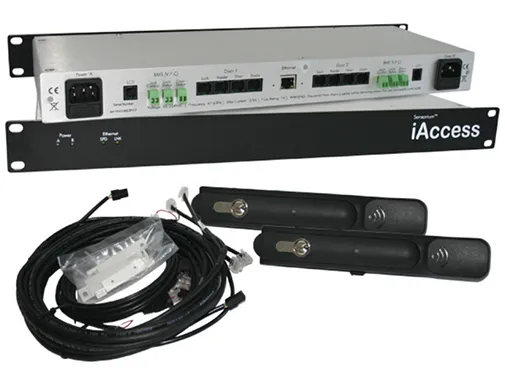

iAccess Controller
The iAccess Controller 1U dual powered, rack-mountable design utilises smart card access control technology and is ideal for use in data centres and remote IT rooms, thanks to its internal webserver that can be access via standard web browser.
Alternatively, it can be integrated into any data centre remote management platform (NMS, BMS, DCIM etc.) that uses SNMP to provide a centralised accessed control system, which also offers a full SNMP Audit Trail.
REQUEST PDF
Features & Benefits
- 2 x Computer cabinet door locks with Wiegand entry card readers – Supplied to allow controlled entry of both front and rear doors of a standard data centre IT cabinet. Access can be made via key, card or remote external control.
- Optional iSensor sensors – By utilising the optional 2 x iSensor sensors, it is possible to monitor the temperature and humidity conditions within the cabinet.
- Optional LCD Keypad entry – An optional LCD Keypad can be installed to the standard iAccess door handles to provide keypad entry. On top of this it also displays lock status and environmental monitoring data when used in conjunction with the optional iSensor temperature/humidity sensors.
- BMS Integration – BMS interface is made possible with isolated lock/door status Voltage Free Contacts and lock control inputs.
- Monitoring/configuration via web browser and/or SNMP – Monitoring of the iAccess Controller is possible over an Ethernet network via internal webserver and through the use of SNMP registers.
- E-mail notification – Event notification through SMTP e-mails are generated when thresholds are breached or contact status changes.
- SNMP Traps – Event notification through SNMP Traps are generated when thresholds are breached or contact status changes.
- SNMP Audit Trail – When integrated to a remote management platform (NMS, BMS, DCIM etc.) iAccess provides a full audit trail via SNMP, recording both authorised and unauthorised accesses. It provides a historical trail of who accessed which cabinet and the method used.
Specification
- 2 x Cabinet door locks and Wiegand entry card readers.
- 2 x iSensor Temperature/Humidity sensor ports.
- Optional sensors – Particle and VFC.
- BMS Integration via isolated lock/door status Volt Free Contacts and lock control inputs.
- Network 10/100Mbps (Auto).
- Configuration/monitoring options – Internal website and SNMP.
- Power – Dual 240V IEC C13 (Max 0.5A).
- LED – Power supply (A & B), Ethernet.
- Dimensions – 1RU x 155mm depth.
- Weight – 1.2Kg
